Lightrus Solar PV Structure Lightrus Solar PV Structure Lightrus Solar PV Structure

Bugis Junction Mall

Commercial Solar Photovoltaic Installation

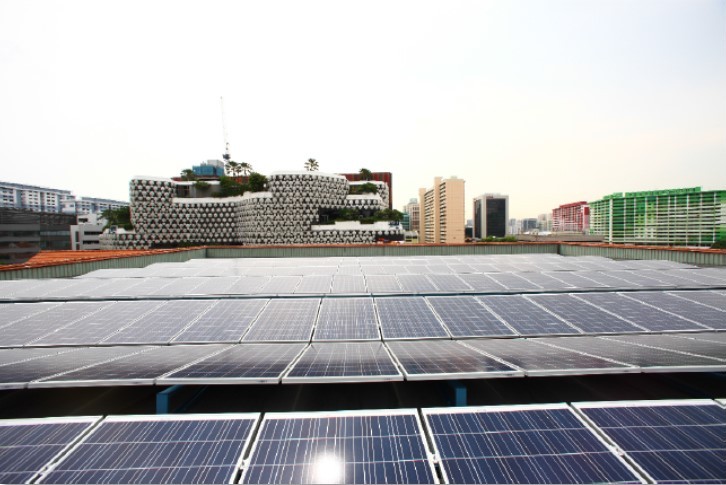

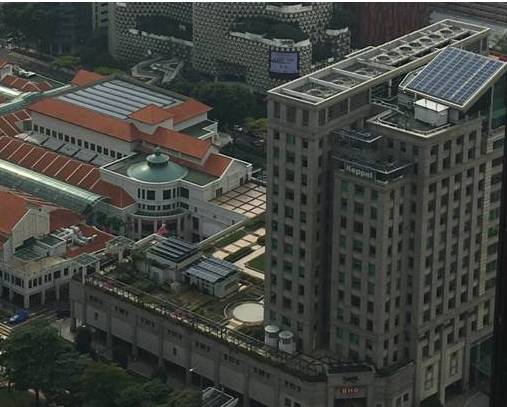

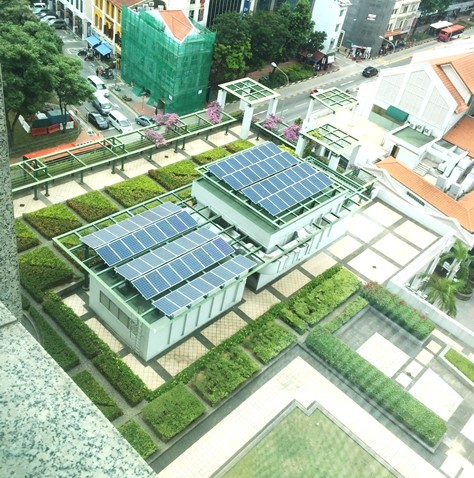

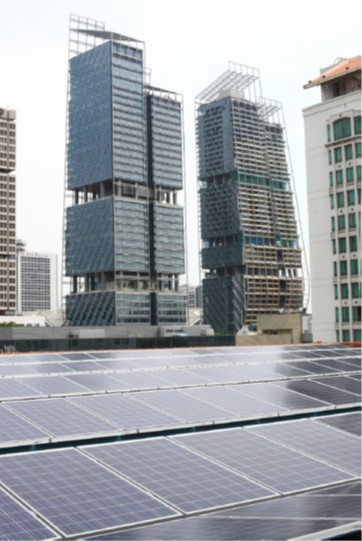

Lightrus Ground-Mount Structures are used at the RC rooftop of the cinema while Lightrus Custom Structures are used on the steel trellises next to the office tower.

For further information, refer to REC Solar's Website.

Close Collaboration With REC Solar Singapore

We work very closely with REC engineers and designers to ensure the mounting structure meets their exacting requirements. This includes pre-cutting the mounting rails to fit the available accessways and designing the structures to support the REC Peak Energy solar panels.

Lightrus Solar PV Structure

Prefabricated Modules

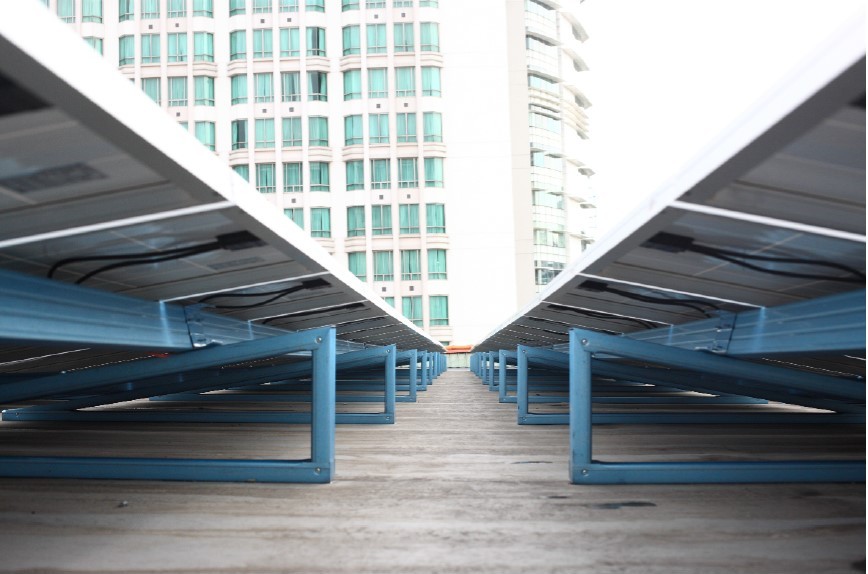

For minimal site works, prefabricated triangles with a custom tilt angle are used together with cut-to-lengths mounting rails.

Each of these ultra-lightweight triangles are less than 5kg and the total Lightrus mounting structure weigh in at less than 0.04kN/m2.

Superior Integration

Our structures are custom made to the designer's design intent and integrates perfectly into the existing structure.

Our structures are based on LGS technology which conforms to international design codes for structural analysis. This give engineers the confidence to design our structure to be supported on structural elements and specify any additional strengthening to the individual members.

Lightrus Solar PV Structure

Safe & Fast

No hot works on site is required as all our joints are either prefabricated or cold joints. This cuts out the time required to apply for hot work permits and results in a safer work environment.

The quick joints via rivets and self-drilling screw allows the entire structure to be installed with with only simple battery-operated tools.
